Broadcast Probing System

Cloud-based monitoring of DVB-T/T2 networks​​

Antenna and skyine at dusk in Santiago. Chile.
© iStock / roccomontoya

Digital service broadcast suffers from misconfigurations at the source and dynamically changing signal propagation conditions. The lack of feedback leads to undisclosed service degradation and decreased experience. Our Broadcast Probing System offers cloud-based continuous near real-time monitoring of broadcast networks by utilizing massively distributed low-cost probes. Controlled either individually or in groups the probes are securely instructed to execute scheduled jobs like scanning, tuning and transport stream inspection. The collected spatiotemporal data links RF characteristics and stream quality, multiplexed tables (e.g. AIT/HbbTV, EIT/EPG) and AV dumps to allow for live analysis, evaluation and integration into monitoring environments.

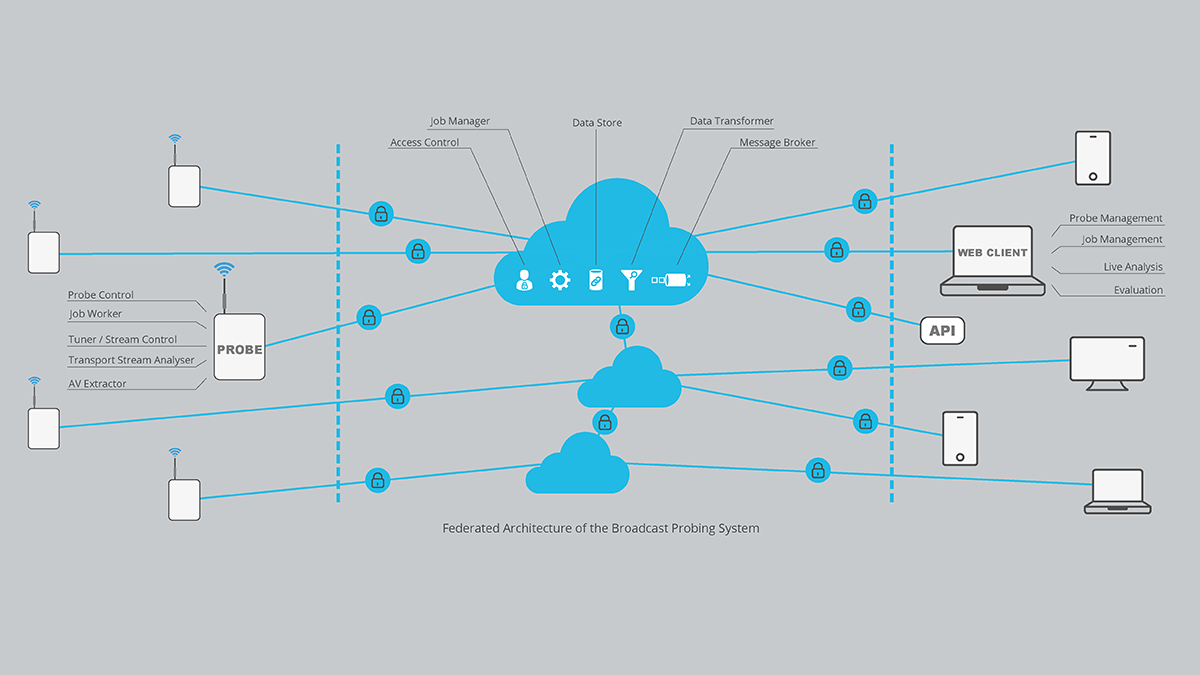

Federated Architecture of the Broadcast Probing System
© Fraunhofer FOKUS
Federated Architecture of the Broadcast Probing System

Features and Assets

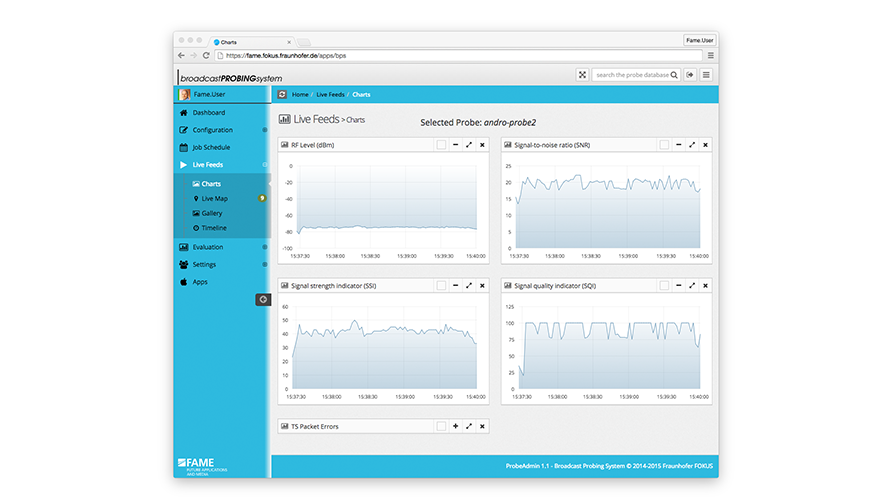

Broadcast Probing System – Cloud based Monitoring of DVB-T/T2 networks
© Fraunhofer FOKUS

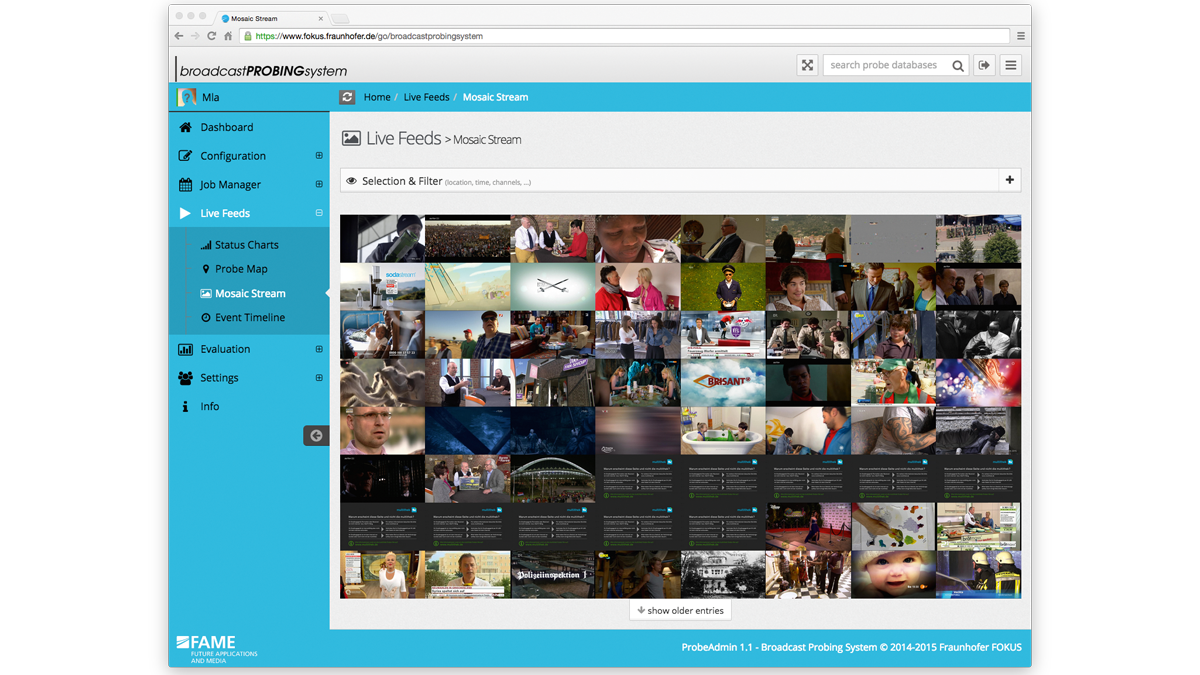

Broadcast Probing System – Cloud based Monitoring of DVB-T/T2 networks
Broadcast Probing System – Cloud based Monitoring of DVB-T/T2 networks
© Fraunhofer FOKUS
Broadcast Probing System – Cloud based Monitoring of DVB-T/T2 networks
  • Feedback channel for DVB-T/T2 networks to detect potential misconfigurations and service degradation
  • Near real-time monitoring of digital service broadcasts (RF level, TS level, AV level, ETSI TR 101 290)
  • Remote control of individual and groups of low-cost probes (Android, Raspberry Pi)
  • Execution of scheduled probing jobs and secure instant access (PKI, TLS)
  • Analysis and evaluation on live and historical linked data (JSON-LD)
  • Integrates with existing monitoring systems and offers a comprehensive API (SNMP, MQTT, REST/HTTPS)
